LCD Display Multi Panel Meter


SKU : 012544

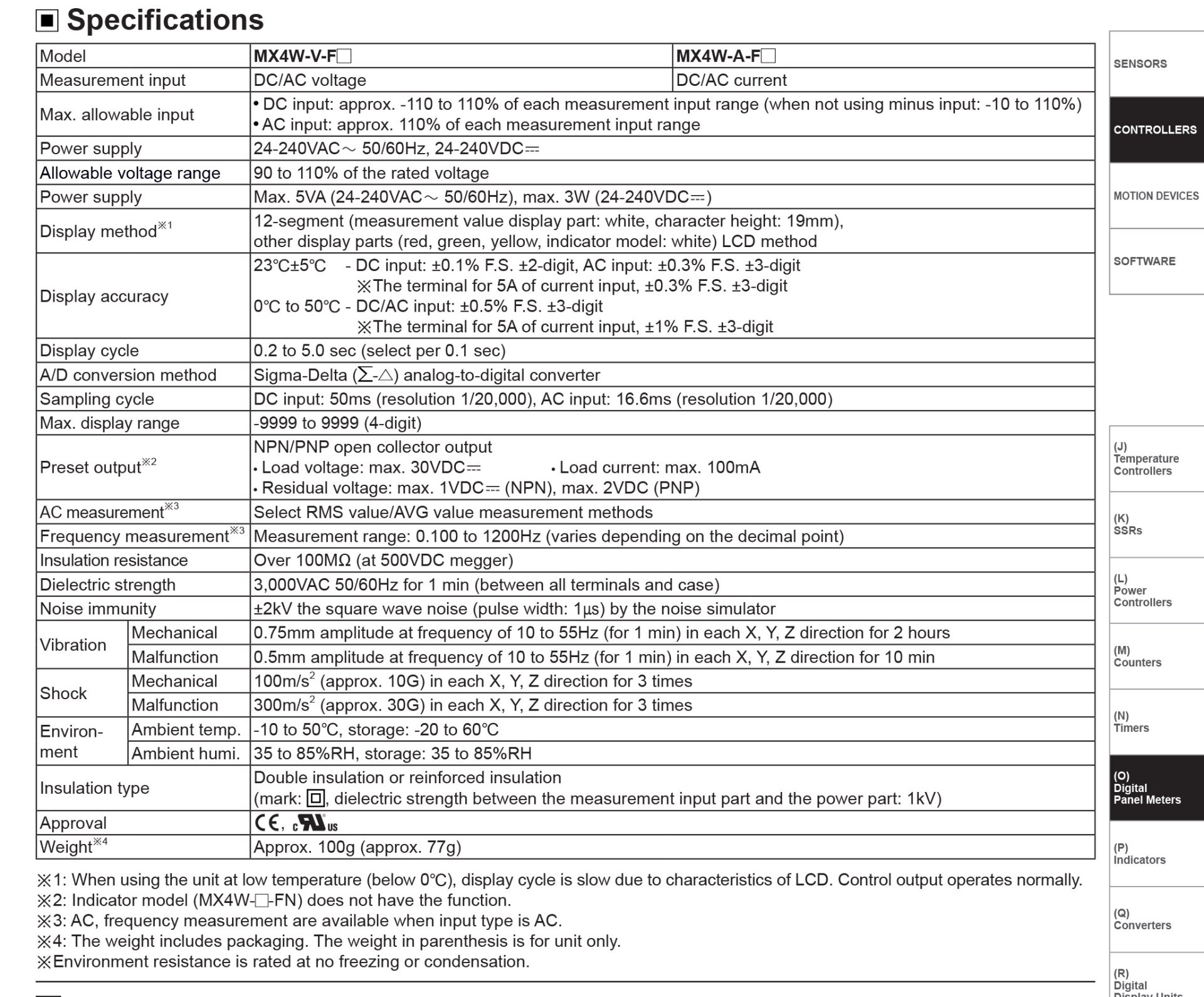

- Display method : 12 segment (measurement value display part: white, character height: 19mm), other display parts(red, green, yellow, indicator model: white) LCD method
- Character height : 19mm
- Max. display Range : -9999 to 9999(4digit)
- Measurement : DC voltage
AC voltage, Frequency
- Input specification : DC ±500mV, ±200mV, ±50mV, ±20V, ±5V, 1-5V, ±2V, ±500V, ±200V, ±50V,
- AC 0-500mV, 0-200mV, 0-50mV, 0-20V, 0-5V, 0-2V, 0-500V, 0-200V, 0-110V, 0-50V
- Power supply : 24-240VAC~ 50/60Hz, 24-240VDC
- Environment_Ambient temperature : -10 to 50℃, storage: -20 to 60℃
- Weight : Approx. 100g(approx. 77g)
