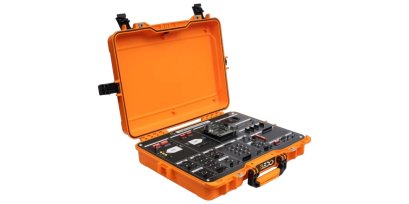

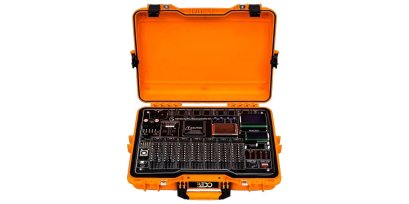

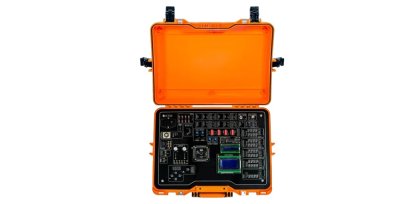

Brand New PLC with the HMI System Training Bag


SKU : Z0516-167


Brand New PLC with the HMI System Training Bag

1.  Application
-     It is a training package designed specifically for education. On the automatic control system using PLC, there is a protection system for trial error. Training kit mounted on a bag, with switch, simulated input rocker. Use with 220VAC 50HZ electrical system.
-     Apply PLC applications with other systems or training sets.
-     Students can learn to program the use of PLCs with HMI.
-     Can be used individually or with the BRAND-NEW ELEVATOR SYSTEM TRAINING EQUIPMENT described at 11 above

2.  System Specifications
-     PLC Model CPU1214C AC/DC/RLY
-     Voltage: at least 90-260Vac, 50Hz
-     Power supply at least 400mA DC 24VDC.
-     Digital Inputs: at least 22 Points / Outputs (Relay): 18 Points
-     Analog Inputs: at least 2 Points (0...10VDC)
-     Bit processing speed at least: 0.1 microsec.
-     Work memory: at least 50 Kbyte
-     Load memory: at least 2 Mbytes
-     Communication port (Interface): at least 1 port; Ethernet
-     1 set of touch screen
-     Touch screen resolution (Display- Resolution (Pixels)): at least 800 x 480
-     One set of Ethernet connection ports.
-     One set of USB connection ports.
-     Memory size at least 10 MB
-     At least 8 function keys.
-     14 input simulated rocker switches
-     Automatic Voltage Regulator: 1 set

3.  Software and Computer
-     User manual and experimental guide documents provided in English.
-     2 Laptops provided with the following details:
-     At least (CPU) 4 cores gen11, speed 2.4 GHz Cache 8MB
-     At least memory (RAM) is DDR4 3200MHz 8GB,
-     At least storage 256GB of 3.0 SSD.
-     At least screen size 14 inches, resolution 1920 x 1080,
-     3 USB ports
-     HDMI and VGA connectors
-     At least 720p HD camera and there is a privacy shutter installed from the factory.
-     Speakers and microphone installed from the factory.
-     Connector RJ-45 connector that supports 10/100/1000 Mbps.
-     Wireless (Wireless LAN) standard 802.11ax and BT 5.0 installed from the factory.
-     Hardware Security TPM v2.0 installed at the factory.
-     Finger print device with a power button.
-     Weighing 1.5 kg including battery or lighter
-     Certified according to various standards The following documents must be referenced.
-     Assembled or manufactured in a factory that has received ISO 9001 and ISO14001 Series standards.
-     Certified Standards FCC Electromagnetic Radiation
-     Certified for safety, UL CB

4.  Consumable, Spare Parts and Additional full equipment Functioning Requirements
-     N/A

5.  Standard
-     Requirement for ISO 9001:2015, or equivalent for Quality Management
-     Manufacturer must have at least 10 years’ experience manufacturing similar training equipment

6. Maintenance and Service
-     Supplier must have experience of specialist/technical support with similar equipment.
-     Services are available through online consultation, spare parts transport, and service must be available locally or in neighboring countries (Southeast Asia). Technical service must be provided within 2 weeks after request.
-     On-site training for a maximum of 10 people for at least 2 days at the time of installation to ensure the participants know how use the instruments.

7. Warranty: 2-year spare part and Services
