The elevator control training set is designed specifically for education. The installation location of various equipment can be clearly seen. The elevator and the controller can be connected together appropriately and conveniently for experimentation. There is a manual and worksheet for the experiment with a safety system for the experimenter. Technical details

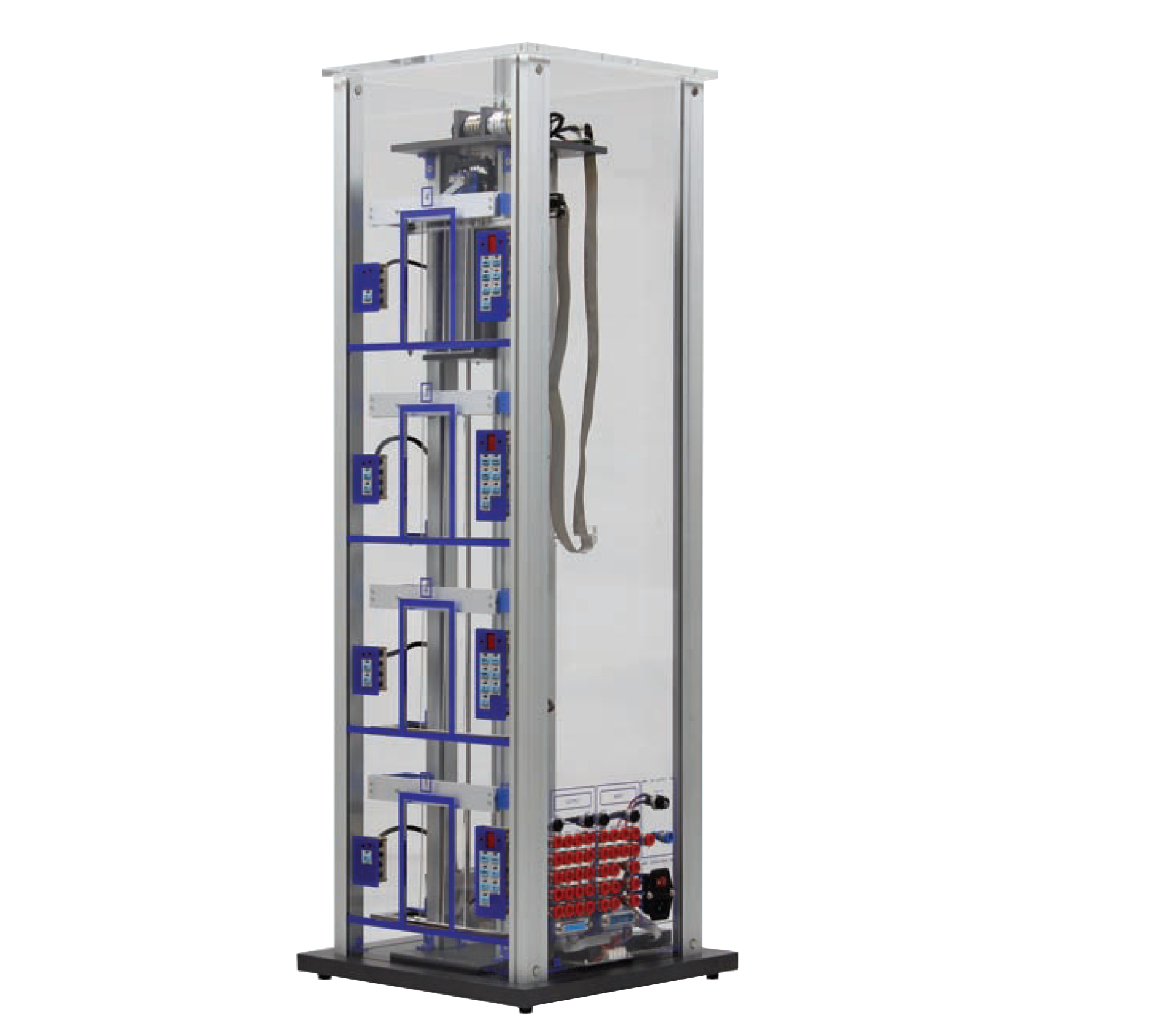

1. Elevator set
1.1. Elevator 4 floor.
1.2. There is a 7-SEGMENT MONITOR that shows the position of the elevator on each floor.
1.3. It can be called to send to every floor with a push switch.
1.4. There is a TERMINAL for connecting to the control device installed on the elevator.
1.5. The elevator door can be controlled to open and close realistically. With indicator light
1.6. The front of the elevator is installed with a 2 mm thick transparent plastic sheet.
1.7. The internal working structure of the elevator can be seen.
2. Relay control set
2.1. OUTPUT signal from every control set through relays.
2.2. Each relay works with an indicator light.
2.3. There is a short-circuit protection device.
2.4. The entire set of equipment is assembled on the same panel.
2.5. The demonstration set has numbers showing the floor and up and down.
2.6. The driving set uses a DC electric motor.
2.7. Can be used with 220 VAC, 50 Hz electricity.
3. PLC control set (option) 3.1. Use with a 220 VAC, 50Hz power supply.
3.2. The programmable controller is installed in a strong bag and is convenient for storage. and put into use
3.3. There is a 4 mm safety socket connection point for connecting external devices to the input and output sections of the PLC
3.3. There is a switch to simulate the operation on the input side
3.4. There are 24 VDC inputs 22 point and relay outputs 18 point
3.5. There is a connection point for testing with the elevator control training set as DB25
