Programmable Logic Controller Experiment Kit with Simulation Board

Programmable Logic Controller Experiment Kit with Simulation Board

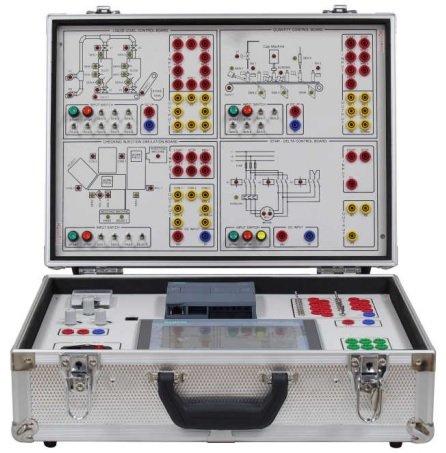

Programmable Logic Controller Experiment Kit with Simulation Panel is designed specifically for education. In the field of PLC-based automation control systems, it covers basic education to practical application. It is easy and convenient to experiment. It has a protection system for error experiments. The training kit comes with 4 sample work simulation kits. The training kit is assembled on a 5 mm thick backlight board with a smooth melamine coating that does not reflect light. It can be installed on a suitable size bag. There are toggle switches to simulate inputs at every point. In the experiment, a safety plug-in cable is used. With experimental documentation It can be used with a 220VAC 50HZ electrical system. Technical details
Programmable Logic Controller Experiment Kit with Simulation Panel Here are the details:
1. Programmable Logic Controller (PLC)
1.1 Power supply 90-260Vac, 50Hz
1.2 DC power supply 24VDC, 400mA.
1.3 Number of Digital Inputs: 14 Points / Outputs (Relay): 10 Points
1.4 Number of Analog Inputs: 2 Points (0...10VDC)
1.5 Communication ports (Interface): 1 Ethernet port
1.6 The CPU has a built-in SD card slot
1.7 Backup data without using batteries for 400 hours
2. Touch screen
2.1 Uses the same brand as the PLC
2.2 Touch screen resolution (Display- Resolution (Pixels)): 800 x 480
2.3 Ethernet connection port
2.4 Memory size 10 MB
2.5 Number function keys: 8
3. Adjustable voltage 0...10VDC
4. Voltmeter with selector switch
5. Input simulation toggle switch 14 units
6. Four sample simulation installed on the bag lid, consisting of
6.1 Silo system simulation
6.2 Filling system simulation
6.3 Checking injection simulation
6.4 Star-Delta start simulation
