Motor driving training kit with programmable logic controller
Attribute:
SKU : Z0538-002
Categories : Education , วิศวกรรมแมคคาทรอนิกส์ , วิศวกรรมไฟฟ้าและอิเล็กทรอนิกส์ , PLC & HMI ,
Brand : Zenna
Share
Motor driving training kit with programmable logic controller

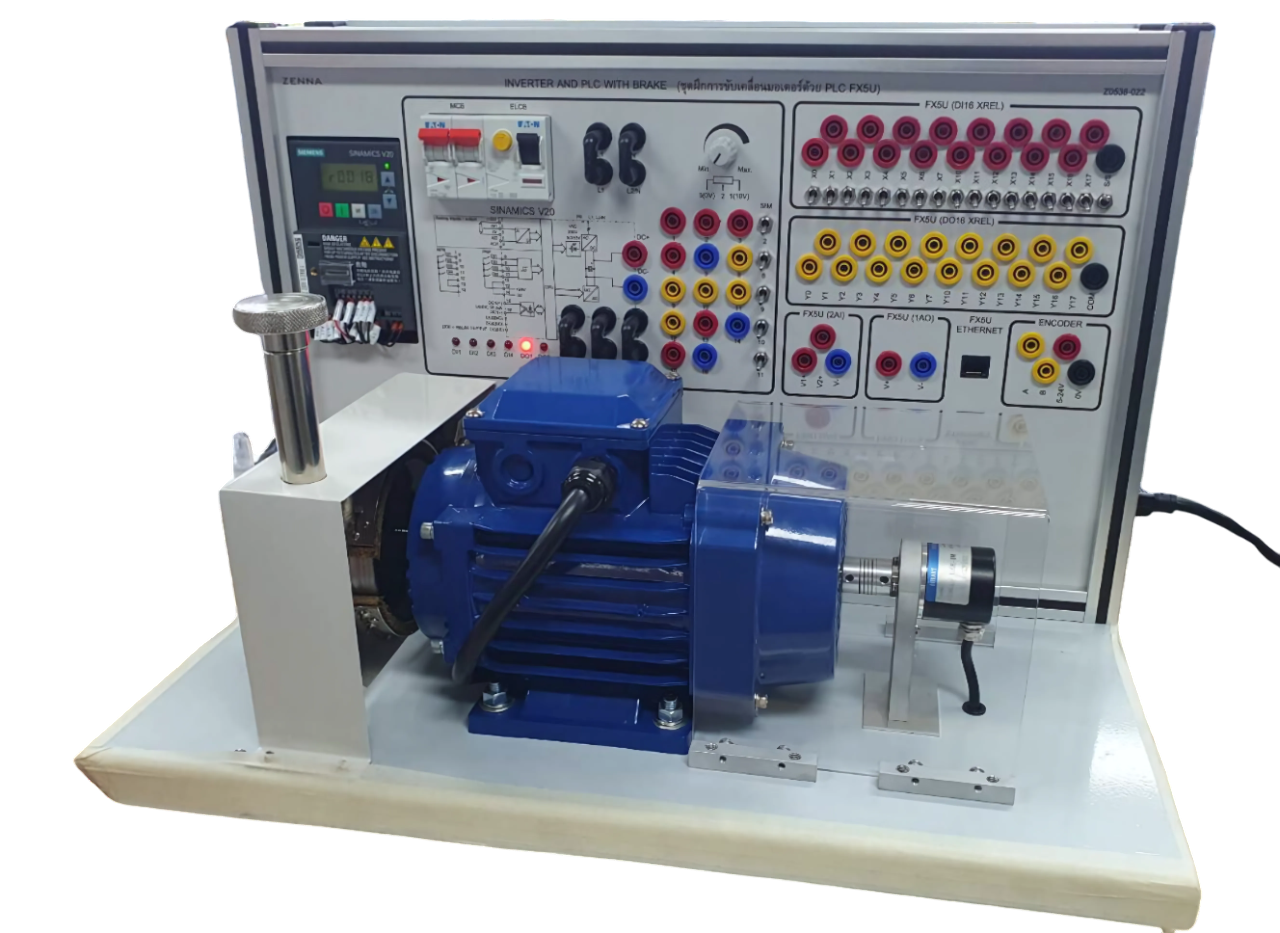

Motor driving training kit with programmable logic controller consists of PLC, inverter, motor and encoder installed together with storage box. Designed for learning the working principle of inverter, using electrical drive set (AC DRIVE) and can be controlled by PLC (Programmable Logic Controller). Technical details
1. Driving control set has the following details:
1.1. 0.3 kW, used with AC 220V
1.2. Digital input and digital output connection
1.3. Analog input signal connection
1.4. V/f Control
2. Motor has the following details:
2.1. Three-phase motor
2.2. Suitable size for inverter
2.3. Encoder for measuring RPM installed in the test set
3. Test panel with storage box
3.1. Connection points for external devices for connecting to the PLC for control of operation
3.2. The experimental panel is made of 5 mm thick bakelite board.
3.3. The base plate and back plate are made of aluminum.
4. The programmable logic controller (PLC) has the following details:
4.1. Digital inputs 16 point
4.2. Digital outputs 16 point
4.3. Analog inputs 2 point
4.4. Analog output 1 point
4.5. Ethernet port.
4.6. Programming languages to choose from: Instruction List (STL) or Structured text (ST), Function Block Diagram (FBD), Ladder Diagram (LAD).
4.7. It can connect to a computer via the RJ45 port to load the program.
