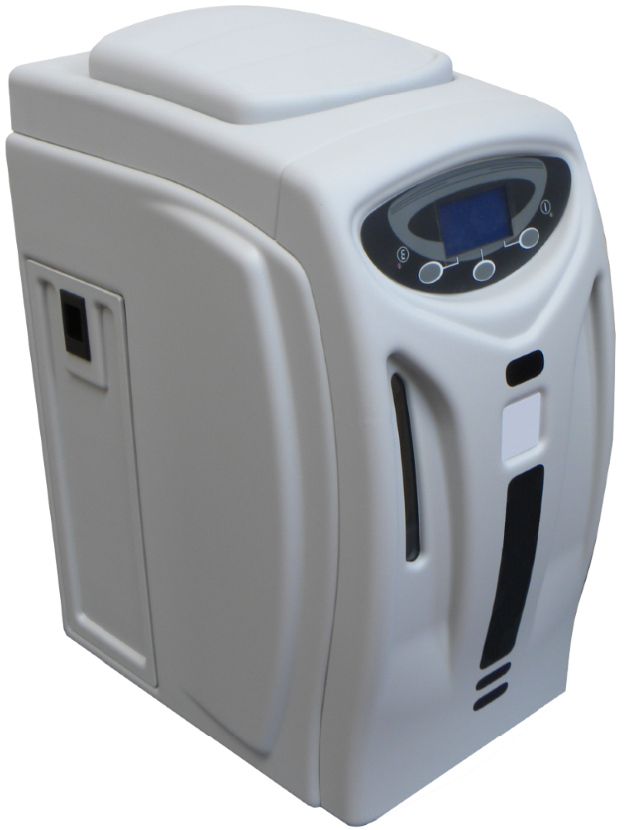

HYDROGEN GENERATOR

HYDROGEN GENERATOR

The device is designed to produce hydrogen for laboratory use and must comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commissions (FCC) regulations. These requirements are intended to limit electromagnetic interference (EMI) emissions that may interfere with radio and television equipment, and to prevent interference with other electronic equipment in the vicinity. The pure hydrogen generator by electrolysis of water and its primary components must be an electrochemical cell assembly containing a solid polymer electrolyte that must be filled with deionized or purified water. Technical details
1 Hydrogen flow rate at STP (standard temperature and pressure) (20°C 1barg) not less than 100cc/min
2 Maximum outlet pressure not less than 10 bar (150psi)
3 Can produce pure hydrogen not less than 98.9999%
4 Power consumption not more than 140W
5 Machine weight not more than 15 kg
6 Use input voltage: 100 to 240V/50-60Hz
7 With 4 A protection fuse
8 Pressure accuracy 0.1bar (± 0.5%)
9 Control screen made of 128x64 pixel microprocessor
10 Protection level IP2x
11 Operating conditions
11.1 Temperature: 15°C to 40°C
11.2 Relative humidity (Non-condensing): 0 to 80%
12 Over voltage category II
13 Noise level 46dB (A)
14 Pollution degree 2
15 The back of the unit has the following components:
15.1 Hydrogen outlet pipe (H2)
15.2 Hydrogen vent
15.3 Oxygen vent
15.4 USB port.
16 The front of the unit has a water level indicator.
