Automated Operations and Control with Industry 4.0 Network

Automated Operations and Control with Industry 4.0 Network

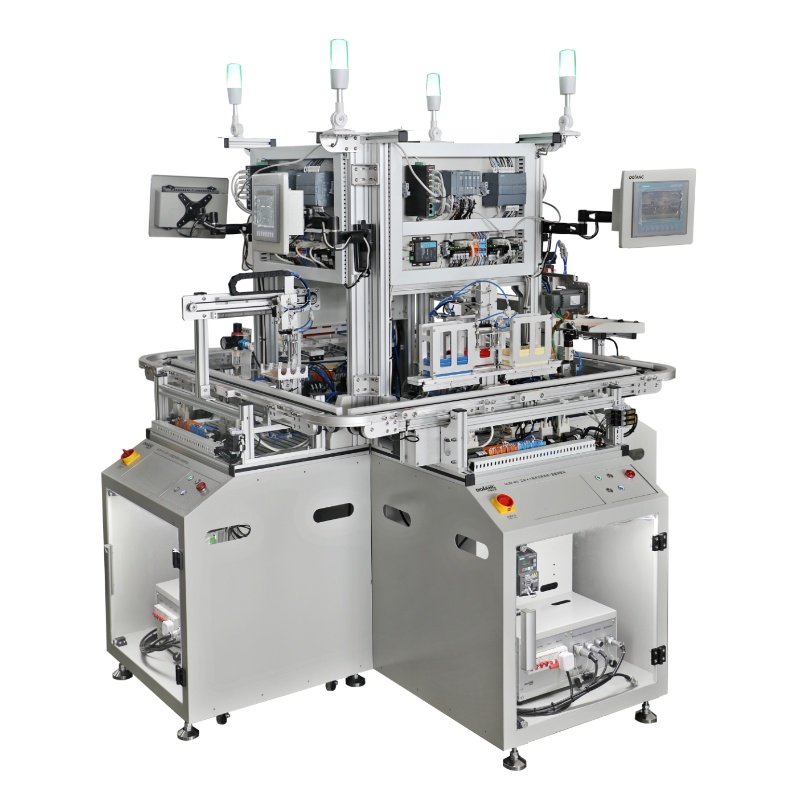

This is a learning set in the form of an industrial simulation station. The structure is made of rust-free aluminum. It is designed specifically for teaching and learning. It emphasizes the importance of RFID (Radio Frequency Identification) technology, which is a radio wave technology used to help machines identify, inspect, identify or identify objects. This experimental set is designed to help learners understand the basic principles, functions and importance of each part, including the application of RFID technology to automatic warehouse systems, which are automatic storage systems, conveyor systems used to transport goods on conveyor belts, and other devices in automatic control systems such as pneumatic systems, motor drive systems, various sensors, PLCs, HMIs and other devices that are actually used in industry. It is used to increase the efficiency of the system, which is the use of machines in the production process to reduce production errors, reduce labor, reduce time, reduce energy loss, and is a system that can be applied in modern manufacturing industries in various ways. Technical details
1. The training set is divided into 4 stations:
* Workpiece transport station 1
* Workpiece transport station 2
* Assembly station
* Storage station
2. All stations are controlled by PLC
3. Power supply AC220V±10%, 50Hz
4. Rated power 2KW
5. Overall dimensions of the equipment 2100mm×2100mm×1780mm (Width x Length x Depth)
6. Installation environment of the training kit Temperature 5 to 40°C℃ Relative humidity <85% (25°C)
7. Safety protection: There are multiple protection systems for short circuit, overload, alarm and emergency stop.
