Basic Pneumatic System

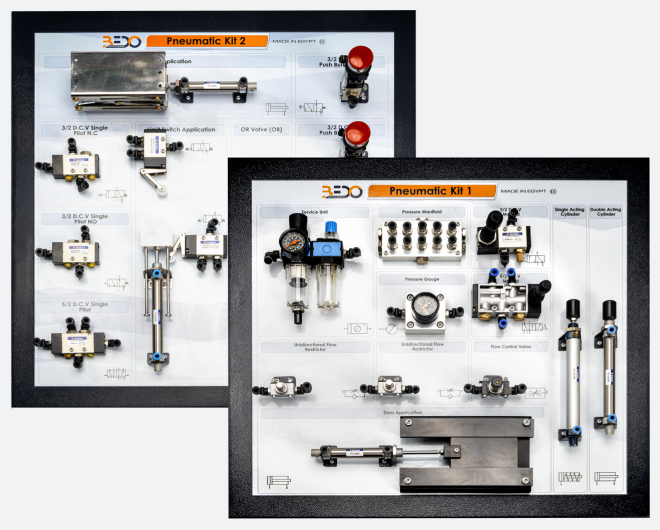

Basic Pneumatic kit is a benchtop educational unit which demonstrates the various pneumatic systems, applications and most common pneumatic components such as actuators, and valves. Additionally, the kit provides the ability to construct and control simple pneumatic circuits. Experiments • Operation a single acting cylinder .
• Operation a single acting cylinder with throttle valve.
• Operation of a single acting cylinder with throttle valve and check valve.
• Operation of double acting cylinder .
• Operation of double acting cylinder with check valve.
• Operation of a single acting cylinder with AND valve.
• Operation of a single acting cylinder with OR valve.
• Operation of single acting cylinder for NOT circuit.
• Limit switch circuit.
• Open and close door circuit.
• Operation of a double acting cylinder with throttle valve and check valve. • UP/Down crane circuit. Technical parameters 1. Pneumatic Unit
Single Acting Cylinder
Double Acting Cylinder
Flow Control Valve
Throttle Check
Push Button Switch Normally Open (Push Button N.O)
Push Button Switch Normally Closed (Push Button N.C)
Single Pilot Control Valve Normally Closed (Single Pilot N.C)
AND Valve
OR Valve
Pressure Gauge
Pressure Regulator
Pressure Manifold
Single Pilot Control Valve Normally Open (Single Pilot N.O)
Double Pilot Control Valve
2. The set comes with a pneumatic circuit diagram to show the operation of various experiments.
3. The set has an Air Service Unit.
4. There is a handle for easy movement.
